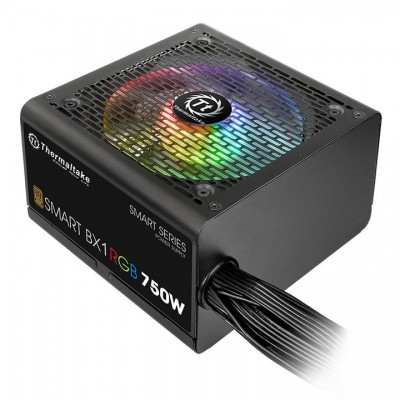

FUENTE TMK BX1 THERMALTAKE PS-SPR-0750NHFABU-1

Fuente de poder THERMALTAKE SMART BX1 750W (PS-SPR-0750NHFABU-1) Watts: 750W; tipo: Intel ATX 12v 2.3; Conectores: PCI-E 6+2 Pin x2, ATX 12V (4+4 Pin) x 1, SATA (4 Pin) x4, Peripheral (4 Pin) x 4, FDD (4 Pin) x 1; Eficiencia: 82-86%; Enfriamiento: Abanico 120 mm con 1800 RPM; Color: negro; Dimensiones: 86mm x 150mm x 140mm



P/N
PS-SPR-0750NHFABx-1

WATTS
750W

VENTILADOR RGB
Sí

FACTOR DE FORMA
ATX

MODELO
SP-750AH2NKB

TIPO
ATX 12V v2.4 and EPS v2.92

MAX. OUTPUT CAPACITY
750W

PEAK OUTPUT CAPACITY
900W

COLOR
Black

DIMENSION ( W / H / D )
150mm(W) x 86mm(H) x 140mm(D)

PFC (POWER FACTOR CORRECTION)
Active PFC

POWER GOOD SIGNAL
100-500 msec

HOLD UP TIME
> 16msec at 70% of full load

INPUT CURRENT
12A max.

INPUT FREQUENCY RANGE
50Hz – 60Hz

INPUT VOLTAGE
100V – 240V~

OPERATING TEMPERATURE
5°C to + 40°C

OPERATING HUMIDITY
20% to 85%, non-condensing

STORAGE TEMPERATURE
-40°C to + 55°C

STORAGE HUMIDITY
10% to 95%, non-condensing

COOLING SYSTEM
12cm Fan Hub

EFFICIENCY
Meet 80 PLUS®Bronze at 115Vac input.

MTBF
100,000 hrs minimum

SAFETY APPROVAL
CE/CB/TUV/ UL/ FCC/ BSMI

PCI-E 6+2PIN
4

PROTECTION
OVP, OPP, SCP
